Synthesis of Aryl Ethers, Methods and Reagents Related Thereto

Background of the Invention

The present invention relates to improved methods for preparing aryl ethers which are useful intermediates and end products in pharmaceutical and agricultural applications.

It has been recently reported that aryl bromides react with simple primary and secondary amines in the presence of a palladium catalyst, supporting ligands and Na(O/Bu) (base) to form the corresponding arylamine in good yields. See, Guram et al. Angew. Chem. 34(12):1348 (1995). Despite the recent successes with palladium-catalyzed cross-coupling reactions of

Ar-X with amines, comparable coupling of aryl halides with alcohols remains elusive, and this in spite of its obvious utility in organic synthesis. Aryl ethers, including oxygen heterocycles, are prominent in a large number of pharmacologically important molecules and are found in numerous secondary metabolites. Existing methods for the conversion of Ar-X to aryl ethers often require harsh or restrictive reaction conditions and/or the presence of activating groups on the arene ring. For example, the Cu(I)-catalyzed syntheses of aryl and vinyl ethers commonly require large amounts of freshly prepared sodium alkoxides and/or large excess of the corresponding alcohol in order to achieve reasonable yields from the corresponding aryl halides and vinyl halides. See, Keegstra et al. Tetrahedron 48(17):3633 (1992).

Cramer and Coulson also reported limited success with the Ni(II)-catalyzed synthesis of diphenyl ether using sodium phenolate at reaction temperatures greater than 200 °C. See, J. Org. Chem. 40(16):2267 (1975). Christau and Desmurs describe the nickel-catalyzed reactions of alcohols with aryl bromides in the presence of a base. Good yields (ca. 80%) were reported only for reactions with primary alcohols with 7 mol% nickel catalyst at 125 °C. See, Ind. Chem Libr. 7:240 (1995). Christau and Desmurs also reported that synthesis of aryl ethers was possible only for primary and secondary alcohols. Houghton and Voyle reported the Rh(III)-catalyzed cyclization of 3-(2- fluorophenyl)propanols to chromans activated by π-bonding to the metal center; however, the reaction required very high rhodium catalyst loading (17 mol%). See, J Chem. Soc. Perkin Trans. I, 925 (1984).

Ether formation has been reported as a minor side product in the palladium- catalyzed carbonylation reactions of highly activated aromatic compound such as α- substituted quinolines. Because of the highly reactive nature of the α-site, it is possible that the reaction proceeds by direct nucleophilic substitution, without promotion or catalysis by the palladium metal center. See, Cacchi et al. Tetrahedron Lett. 27(33):3931 (1986).

Thus there remains a need for an effective method of preparing a wide range of aryl ethers under mild conditions and in high yields. There is a further need for an efficient catalytic system with high efficiencies and turnover number for the synthesis of aryl ethers. In addition, there still remains a need for an effective method for the arylation of tertiary alkoxides.

Summary of the Invention

The present invention provides general and attractive routes to a wide range of aryl ethers. The methods provide several improvements over methods known heretofore, namely, the efficient synthesis of aryl ethers under mild conditions and in high yields. In particular, the method of the invention may be used in coupling reactions using tertiary alcohols. In other aspects of the invention, the invention provides a class of transition metal complexes useful in the catalytic reactions of the invention which were heretofore not known to be useful in the preparation of aryl ethers.

Brief Description of the Invention

Figure 1. Scheme illustrating possible reaction steps in the synthesis of aryl ethers according to the method of the invention.

Figure 2. Representative first-order plots for disappearance of 4 in THF-flfø at 23 (V), 37 (Δ), 47 (O), and 55 °C (x), where [KOCH2CMe3] 2 0.002 M. Error bars correspond to ± 5% integration error in the corresponding Η NMR spectra.

Figure 3. Second-order plot for disappearance of 4 in THF-ήfø at 47 °C.

Figure 4. Eyring plot for the thermolysis of 4 in THF-ύfø over the temperature range 23 - 57 °C. Figure 5. Potassium neopentoxide concentration dependence of the rate of reductive elimination of 4 in THF-ύfø at 47 °C. Figure 6. Potassium neopentoxide concentration dependence of the rate of alkoxide exchange with 4 in THF-c at 47 °C.

Detailed Description of the Invention Overview

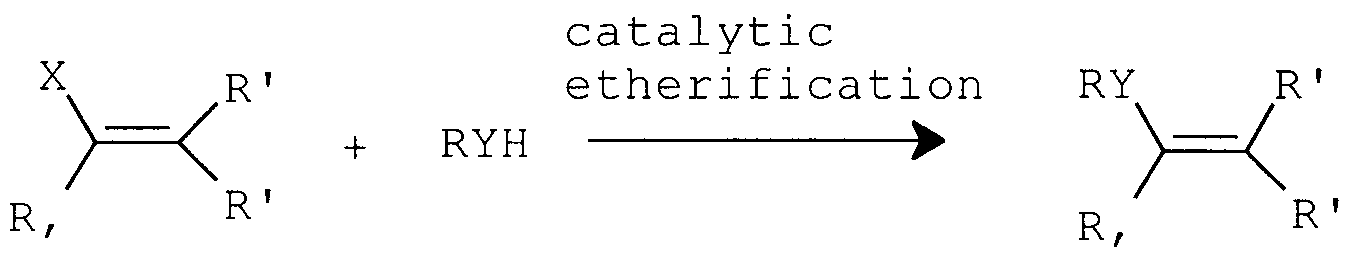

In one aspect of the invention, an aryl ether compound is prepared by reacting an alcohol or its corresponding alkoxide salt with an aromatic compound in the presence of a base and a metal catalyst including a metal atom of Group VIII metals such as iron, cobalt, nickel, rhodium, palladium and platinum, though platinum, palladium and nickel (group 10) are most preferred. The aromatic compound comprises an activated substituent, X, which generally is a moiety such that its conjugate acid HX has a pKa of less than 5.0. When the reaction takes place using an alkoxide salt, a base may not be required.

In preferred embodiments, the subject synthetic reaction can be characterized by the general reaction schemes (Scheme la): catalytic etherification

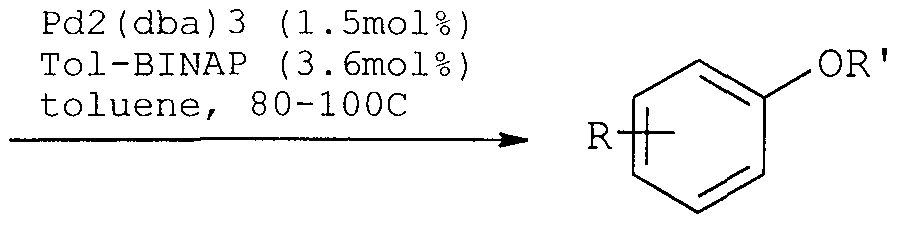

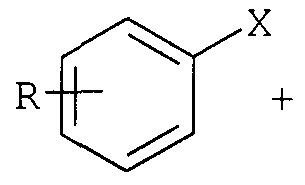

R-YH+ ArX Ar-Y-R

2 i metal catalyst 3 base

Scheme la: wherein: Ar represents an aryl group (which may be furthered substituted beyond

X); X represents a leaving group (such as a halide or a sulfonate), which can be displaced by a nucleophilic alcohol oxygen, such as in a metal-dependent etherification reaction; Y represents O, S or Se; R represents, as valence and stability permit, a subsitituted or unsubstituted alkyl or alkenyl group, or -(CH2)m- 8, wherein Rg represents a substituted or unsubstituted aryl, cycloalkyl, cycloalkenyl, heterocycle or polycycle, and m is zero or an integer in the range of 1 to 8.

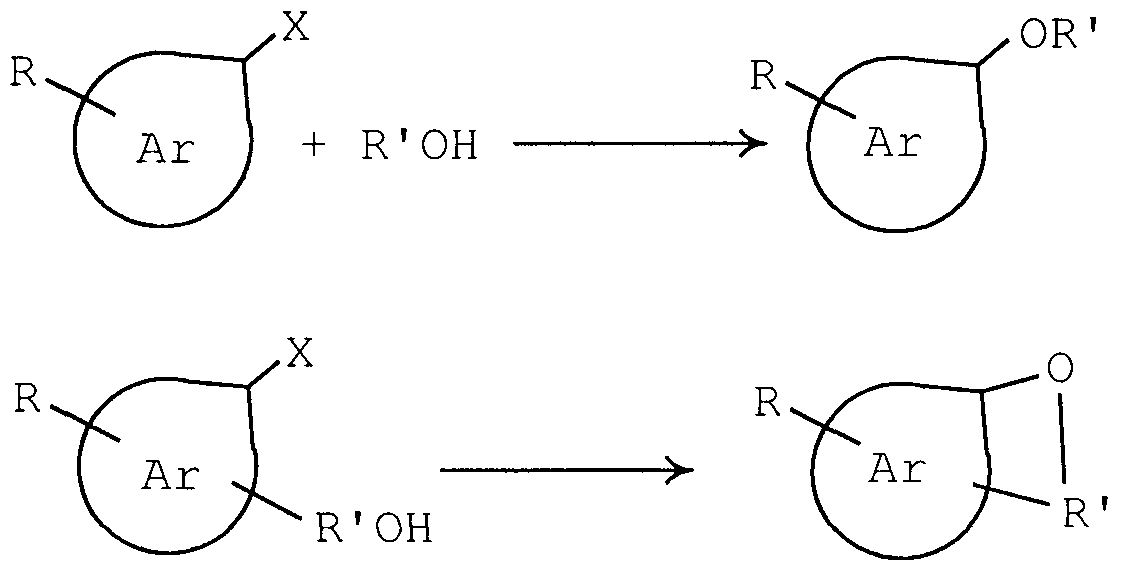

According to scheme la, an alcohol i (e.g., Y=O) is reacted with an aromatic compound 2 having an activated substituent, X, to form an aryl ether 3. The reaction is run in the presence of at least a catalytic amount of a transition metal catalyst which promotes the cross-coupling of the alcohol and activated aryl nucleus to form the resulting ether product, 3. The reaction, in general, proceeds in the presence of a transition metal complex (with or without a supporting ligand) and a suitable base. The reaction may be either an intermolecular or intramolecular reaction. In the instance of the latter, it will be relized that, with reference to scheme la, RYH is a subsituent of Ar, and the reaction scheme can be represented by the formula: catalytic etherification

metal catalyst Ar R base wherein R-YH represents a substituent of Ar, e.g., a hydroxy-subsitituted alkyl or alkenyl group, which disposes Y from 2 to 10 bond lengths away from the substituted position on Ar, more preferably from 2 to 5 bond lengths. Thus, upon intramolecular etherification, Y is bonded to R and the X-substituted site on Ar. Preferably, Y, R and the bridging portion of Ar form a fused ring with Ar having from 4 to 8 atoms in the ring, more preferably 5, 6 or 7 atoms. Recast slightly, the intermolecular and intramolecular reaction involving an aryl substrate can be represented in the two schemes:

While not intending to be bound by any particular theory, the reaction most likely proceeds via oxidative-addition of the aromatic compound 2 to a zero-valent catalyst metal center, substitution of X by the alcohol 1 at the metal center, followed by reductive- elimination to generate the aryl ether 3. The base presumably promotes formation of an oxygen-metal bond, in which the metal is the metal center of the catalyst, presumably by facilitating proton abstraction from the alcohol hydrogen.

While not being bound by any particular mode of operation, it is hypothesized that the mechanism of the preferred Pd-catalyzed synthesis of aryl ethers and vinyl ethers may proceed via a pathway similar to depicted in Figure 1. Figure 1 presents a proposed reaction pathway for the synthesis of an aryl ether via an intermolecular reaction. Any ligands that may be present on the palladium atom during this process have been omitted for clarity. With reference to the Figure, oxidative addition of the Pd(0) complex to the aryl halide affords the Pd(II) organometallic complex intermediate A. In the presence of a suitable base, reaction of the alcohol (or alkoxide) moiety with A could, after a deprotonation event to generate B, afford intermediate C, which would then undergo reductive elimination to yield the product aryl ether and regenerate the active catalyst. The reaction sequence is likely to be similar for intramolecular reactions. Alternatively, and particularly for nickel catalysts, the active transition metal species in the oxidative addition step may involve the metal in the +1 oxidation state.

In preferred embodiments of the invention, there is no need to use large excesses of either reactant - alcohol or aromatic compound. The reaction proceeds quickly and in high yield to the product aryl ether using substantially stoichiometric amount of reagents. Thus, the alcohol may be present in as little as a two-fold excess and preferably in no greater than a 20% excess relative to the aromatic compound. Alternatively, the aromatic compound may be present in as little as a two-fold excess and preferably in no greater than a 20% excess relative to the alcohol.

In another embodiment, the alcohol of the above reaction can be replaced with a thiol or selenol, e.g., having a formula HS-R or HSe-R, respectively, R being defined above. In such embodiments, the thiol or selenol is activated as the nucleophile to form an adduct with an aryl group of the general formula Ar-S-R and Ar-Se-R. Accordingly, throughout the application, it will be apparent that most recitation of embodiments involving an alcohol can also be carried out with a thiol or selenol.

In still another embodiment, the subject method can be used to generate vinyl ethers. In similar fashion to the reaction scheme set above, the etherification of a vinyl- activated hydrocarbon can be carried out according to the general reaction scheme:

Scheme lb wherein: X represents a leaving group (such as a halide or a sulfonate), which can be displaced by the nucleophilic ether oxygen, such as in a metal-dependent etherification reaction; Y represents O, S or Se; R, represents, as valence and stability permit, a subsitituted or unsubstituted alkyl or alkenyl group, or -(CH2)m-R8> wherein Rg represents a substituted or unsubstituted aryl, cycloalkyl, cycloalkenyl, heterocycle or polycycle, and m is zero or an integer in the range of 1 to 8; and each R' is independently selected, as valence and stability permit, to be a hydrogen, a halogen, a lower alkyl, a lower alkenyl, a lower alkynyl, a carbonyl (e.g., an ester, a carboxylate, or a formate), a thiocarbonyl (e.g., a thiolester, a thiolcarboxylate, or a thiolformate), a ketone, an aldehyde, an amino, an acylamino, an amido, an amidino, a cyano, a nitro, an azido, a sulfonyl, a sulfoxido, a sulfate, a sulfonate, a sulfamoyl, a sulfonamido, a phosphoryl, a phosphonate, a phosphinate, -(CH2)m-R8> -(CH2) -OH, -(CH2)m-O-lower alkyl, - (CH2)m-O-lower alkenyl, -(CH2)m-O-(CH2)n-R8, -(CH2)m-SH, -(CH2)m-S-lower alkyl, -(CH2)m-S-lower alkenyl, -(CH2)m-S-(CH2)n-R8, or protecting groups of the above or a solid or polymeric support; Rg represents a substituted or unsubstituted aryl, aralkyl, cycloalkyl, cycloalkenyl, or heterocycle; and n and m are independently for each occurrence zero or an integer in the range of 1 to 6. P is preferably in the range of 0 to 5. As above, the alcohol can be provided in the form of a precursor which activated in situ to provide the reactive alcohol.

The reaction can proceed at mild temperatures and pressures to give high yields of the product aryl ether. Thus, yields of greater than 45%, preferably greater than 75% and even more preferably greater than 80%) may be obtained by reaction at mild temperatures according to the invention. The reaction may be carried out at temperature less than 120°C, and preferably in the range of 50-120°C. In one preferred embodiment, the reaction is carried out at a temperature in the range of 80-100°C.

The reaction can be run in a wide range of solvent systems, including polar aprotic solvents.

The ability to provide an ether synthesis scheme which can be carried out under mild conditions and/or with non-polar solvents has broad application, especially in the agricultural and pharmaceutical industries, as well as in the polymer industry. In this regard, the subject reaction is more amenable to use of reactants or products which include sensitive functionalities, e.g., which would otherwise be labile under harsh reaction conditions. The subject etherification reactions can be used as part of a combinatorial synthesis scheme to yield aryl ethers. Accordingly, another aspect of the present invention relates to use of the subject method to generate variegated libraries of aryl ethers of the general formula Ar-OR, and to the libraries themselves. The libraries can be soluble or linked to insoluble supports, e.g., either through substituents of the aryl group or through R.

Definitions For convenience, before further description of the present invention, certain terms employed in the specification, examples, and appended claims are collected here.

The term "substrate aryl group" refers to an aryl group containing an electrophilic atom which is susceptible to the subject cross-coupling reaction, e.g., the electrophilic atom bears a leaving group. In reaction scheme 1, the substrate aryl is represented by ArX, and X is the leaving group. The aryl group, Ar, is said to be substituted if, in addition to X, it is substituted at yet other positions. The substrate aryl group can be a single ring molecule, or can be a substituent of a larger molecule.

The term "reactive alcohol group" refers to an alcohol group which can attack the electrophilic atom of the substrate aryl group and displace the leaving group in the subject cross-coupling reaction. In reaction schemes la and lb, the nucleophilic aryl group is represented by ROH. The reactive alcohol group can be a component of a molecule separate from the substrate aryl group, or a substituent of the same molecule (e.g., for intramolecular condensation). A "reactive thiol" and a "reactive selenol" have similar meanings. The term "nucleophile" is recognized in the art, and as used herein means a chemical moiety having a reactive pair of electrons.

The term "electrophile" is art-recognized and refers to chemical moieties which can accept a pair of electrons from a nucleophile as defined above. Electrophilic moieties useful in the method of the present invention include halides and sulfonates. The terms "electrophilic atom", "electrophilic center" and "reactive center" as used herein refer to the atom of the substrate aryl moiety which is attacked by, and forms a new bond to, the alcohol oxygen. In most (but not all) cases, this will also be the aryl ring atom from which the leaving group departs.

The term "electron-withdrawing group" is recognized in the art, and denotes the tendency of a substituent to attract valence electrons from neighboring atoms, i.e., the substituent is electronegative with respect to neighboring atoms. A quantification of the level of electron-withdrawing capability is given by the Hammett sigma (s) constant. This well known constant is described in many references, for instance, J. March, Advanced

Organic Chemistry, McGraw Hill Book Company, New York, (1977 edition) pp. 251-259.

The Hammett constant values are generally negative for electron donating groups (s[P] = - 0.66 for NH2) and positive for electron withdrawing groups (s[P] = 0.78 for a nitro group), s[P] indicating para substitution. Exemplary electron-withdrawing groups include nitro, ketone, aldehyde, sulfonyl, trifluoromethyl, -CN. chloride, and the like. Exemplary electron-donating groups include amino, methoxy, and the like.

The term "reaction product" means a compound which results from the reaction of the alcohol and the substrate aryl group. In general, the term "reaction product" will be used herein to refer to a stable, isolable aryl ether adduct, and not to unstable intermediates or transition states.

The term "catalytic amount" is recognized in the art and means a substoichiometric amount of reagent relative to a reactant. As used herein, a catalytic amount means from

0.0001 to 90 mole percent reagent relative to a reactant, more preferably from 0.001 to 50 mole percent, still more preferably from 0.01 to 10 mole percent, and even more preferably from 0.1 to 5 mole percent reagent to reactant.

The term "alkyl" refers to the radical of saturated aliphatic groups, including straight-chain alkyl groups, branched-chain alkyl groups, cycloalkyl (alicyclic) groups, alkyl substituted cycloalkyl groups, and cycloalkyl substituted alkyl groups. In preferred embodiments, a straight chain or branched chain alkyl has 30 or fewer carbon atoms in its backbone (e.g., C1 -C30 for straight chain, C3-C30 for branched chain), and more preferably 20 or fewer. Likewise, preferred cycloalkyls have from 3-10 carbon atoms in their ring structure, and more preferably have 5, 6 or 7 carbons in the ring structure.

Moreover, the term "alkyl" (or "lower alkyl") as used throughout the specification and claims is intended to include both "unsubstituted alkyls" and "substituted alkyls", the latter of which refers to alkyl moieties having substituents replacing a hydrogen on one or more carbons of the hydrocarbon backbone. Such substituents can include, for example, a halogen, a hydroxyl, a carbonyl (such as a carboxyl, an ester, a formyl, or a ketone), a thiocarbonyl (such as a thioester, a thioacetate, or a thioformate), an alkoxyl, a phosphoryl, a phosphonate, a phosphinate, an amino, an amido, an amidine, an imine, a cyano, a nitro, an azido, a sulfhydryl, an alkylthio, a sulfate, a sulfonate, a sulfamoyl, a sulfonamido, a sulfonyl, a heterocyclyl, an aralkyl, or an aromatic or heteroaromatic moiety. It will be understood by those skilled in the art that the moieties substituted on the hydrocarbon chain can themselves be substituted, if appropriate. For instance, the substituents of a substituted alkyl may include substituted and unsubstituted forms of amino, azido, imino, amido, phosphoryl (including phosphonate and phosphinate), sulfonyl (including sulfate, sulfonamido, sulfamoyl and sulfonate), and silyl groups, as well as ethers, alkylthios, carbonyls (including ketones, aldehydes, carboxylates, and esters), -CF3, -CN and the like.

Exemplary substituted alkyls are described below. Cycloalkyls can be further substituted with alkyls, alkenyls, alkoxys, alkylthios, aminoalkyls, carbonyl-substituted alkyls, -CF3, -

CN, and the like.

The term "aralkyl", as used herein, refers to an alkyl group substituted with an aryl group (e.g., an aromatic or heteroaromatic group).

The terms "alkenyl" and "alkynyl" refer to unsaturated aliphatic groups analogous in length and possible substitution to the alkyls described above, but that contain at least one double or triple bond respectively.

Unless the number of carbons is otherwise specified, "lower alkyl" as used herein means an alkyl group, as defined above, but having from one to ten carbons, more preferably from one to six carbon atoms in its backbone structure. Likewise, "lower alkenyl" and "lower alkynyl" have similar chain lengths. Preferred alkyl groups are lower alkyls. In preferred embodiments, a substituent designated herein as alkyl is a lower alkyl.

The term "aryl" as used herein includes 5-, 6- and 7-membered single-ring aromatic groups that may include from zero to four heteroatoms, for example, benzene, pyrrole, furan, thiophene, imidazole, oxazole, thiazole, triazole, pyrazole, pyridine, pyrazine, pyridazine and pyrimidine, and the like. Those aryl groups having heteroatoms in the ring structure may also be referred to as "aryl heterocycles" or "heteroaromatics".

The aromatic ring can be substituted at one or more ring positions with such substituents as described above, for example, halogen, azide, alkyl, aralkyl, alkenyl, alkynyl, cycloalkyl, hydroxyl, amino, nitro, sulfhydryl, imino, amido, phosphonate, phosphinate, carbonyl, carboxyl, silyl, ether, alkylthio, sulfonyl, sulfonamido, ketone, aldehyde, ester, heterocyclyl, aromatic or heteroaromatic moieties, -CF3, -CN, or the like. The term "aryl" also includes polycyclic ring systems having two or more cyclic rings in which two or more carbons are common to two adjoining rings (the rings are "fused rings") wherein at least one of the rings is aromatic, e.g., the other cyclic rings can be cycloalkyls, cycloalkenyls, cycloalkynyls, aryls and/or heterocyclyls. The terms "heterocyclyl" or "heterocyclic group" refer to 3- to 10-membered ring structures, more preferably 3- to 7-membered rings, whose ring structures include one to four heteroatoms. Heterocycles can also be polycycles. Heterocyclyl groups include, for example, thiophene, thianthrene, furan, pyran, isobenzofuran, chromene, xanthene, phenoxathiin, pyrrole, imidazole, pyrazole, isothiazole, isoxazole, pyridine, pyrazine, pyrimidine, pyridazine, indolizine, isoindole, indole, indazole, purine, quinolizine, isoquinoline, quinoline, phthalazine, naphthyridine, quinoxaline, quinazoline, cinnoline, pteridine, carbazole, carboline, phenanthridine, acridine, pyrimidine, phenanthroline, phenazine, phenarsazine, phenothiazine, furazan, phenoxazine, pyrrolidine, oxolane, thiolane, oxazole, piperidine, piperazine, moφholine, lactones, lactams such as azetidinones and pyrrolidinones, sultams, sultones, and the like. The heterocyclic ring can be substituted at one or more positions with such substituents as described above, as for example, halogen, alkyl, aralkyl, alkenyl, alkynyl, cycloalkyl, hydroxyl, amino, nitro, sulfhydryl, imino, amido, phosphonate, phosphinate, carbonyl, carboxyl, silyl, ether, alkylthio, sulfonyl, ketone, aldehyde, ester, a heterocyclyl, an aromatic or heteroaromatic moiety, -CF3, -CN, or the like.

The terms "polycyclyl" or "polycyclic group" refer to two or more rings (e.g., cycloalkyls, cycloalkenyls, cycloalkynyls, aryls and/or heterocyclyls) in which two or more carbons are common to two adjoining rings, e.g., the rings are "fused rings". Rings that are joined through non-adjacent atoms are termed "bridged" rings. Each of the rings of the polycycle can be substituted with such substituents as described above, as for example, halogen, alkyl, aralkyl, alkenyl, alkynyl, cycloalkyl, hydroxyl, amino, nitro, sulfhydryl, imino, amido, phosphonate, phosphinate, carbonyl, carboxyl, silyl, ether, alkylthio, sulfonyl, ketone, aldehyde, ester, a heterocyclyl, an aromatic or heteroaromatic moiety, -CF3, -CN, or the like.

The term "carbocycle", as used herein, refers to an aromatic or non-aromatic ring in which each atom of the ring is carbon.

The term "heteroatom" as used herein means an atom of any element other than carbon or hydrogen. Preferred heteroatoms are nitrogen, oxygen, sulfur and phosphorous. As used herein, the term "nitro" means -NO2; the term "halogen" designates -F, -

Cl, -Br or -I; the term "sulfhydryl" means -SH; the term "hydroxyl" means -OH; and the term "sulfonyl" means -SO2-. The terms "amine" and "amino" are art recognized and refer to both unsubstituted and substituted amines, e.g., a moiety that can be represented by the general formula:

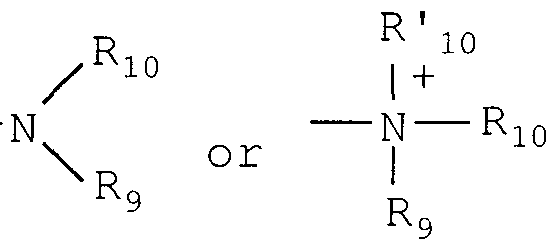

wherein R9, RJ Q and R' J O each independently represent a hydrogen, an alkyl, an alkenyl, -(CH2)m- 8> or R9 and R\ Q taken together with the N atom to which they are attached complete a heterocycle having from 4 to 8 atoms in the ring structure; Rg represents an aryl, a cycloalkyl, a cycloalkenyl, a heterocycle or a polycycle; and m is zero or an integer in the range of 1 to 8. In preferred embodiments, only one of R9 or RJ Q can be a carbonyl, e.g., R9, Rio and the nitrogen together do not form an imide. In even more preferred embodiments, R9 and RJ Q (and optionally R' \ Q) each independently represent a hydrogen, an alkyl, an alkenyl, or -(CH2)m-R8- Thus, the term "alkylamine" as used herein means an amine group, as defined above, having a substituted or unsubstituted alkyl attached thereto, i.e., at least one of R9 and RJ Q is an alkyl group.

The term "acylamino" is art-recognized and refers to a moiety that can be represented by the general formula:

0

— N — "— R ' I I

R9 wherein R9 is as defined above, and R'\ \ represents a hydrogen, an alkyl, an alkenyl or -(CH2)m-R8> where m and Rg are as defined above.

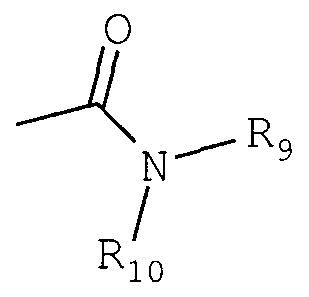

The term "amido" is art recognized as an amino-substituted carbonyl and includes a moiety that can be represented by the general formula:

wherein R9, RT Q are as defined above. Preferred embodiments of the amide will not include imides which may be unstable. The term "alkylthio" refers to an alkyl group, as defined above, having a sulfur radical attached thereto. In preferred embodiments, the "alkylthio" moiety is represented by one of -S-alkyl, -S-alkenyl, -S-alkynyl, and -S-(CH2)m-R8, wherein m and Rg are defined above. Representative alkylthio groups include methylthio. ethyl thio, and the like.

The term "carbonyl" is art recognized and includes such moieties as can be represented by the general formula:

0 0

-"-X-Rll ' °r-X-J 1J- R ' n wherein X is a bond or represents an oxygen or a sulfur, and R\ \ represents a hydrogen, an alkyl, an alkenyl, -(CH2)m-R8 or a pharmaceutically acceptable salt, R'j \ represents a hydrogen, an alkyl, an alkenyl or -(CH2)m-R8- where m and Rg are as defined above.

Where X is an oxygen and R\ \ or R'ι \ is not hydrogen, the formula represents an "ester".

Where X is an oxygen, and Rj \ is as defined above, the moiety is referred to herein as a carboxyl group, and particularly when R\ \ is a hydrogen, the formula represents a "carboxylic acid". Where X is an oxygen, and R'\ \ is hydrogen, the formula represents a

"formate". In general, where the oxygen atom of the above formula is replaced by sulfur, the formula represents a "thiolcarbonyl" group. Where X is a sulfur and R\ \ or R'j \ is not hydrogen, the formula represents a "thiolester." Where X is a sulfur and R\ \ is hydrogen, the formula represents a "thiolcarboxylic acid." Where X is a sulfur and R\ \' is hydrogen, the formula represents a "thiolformate." On the other hand, where X is a bond, and R\ \ is not hydrogen, the above formula represents a "ketone" group. Where X is a bond, and R\ \ is hydrogen, the above formula represents an "aldehyde" group.

The terms "alkoxyl" or "alkoxy" as used herein refers to an alkyl group, as defined above, having an oxygen radical attached thereto. Representative alkoxyl groups include methoxy, ethoxy, propyloxy, tert-butoxy and the like. An "ether" is two hydrocarbons covalently linked by an oxygen. Accordingly, the substituent of an alkyl that renders that alkyl an ether is or resembles an alkoxyl, such as can be represented by one of -O-alkyl, - O-alkenyl, -O-alkynyl, -O-(CH2)m-R8, where m and R8 are described above.

The term "sulfonate" is art recognized and includes a moiety that can be represented by the general formula: : 0 I I S - OR41

0 in which R41 is an electron pair, hydrogen, alkyl, cycloalkyl, or aryl.

The term "sulfate" is art recognized and includes a moiety that can be represented by the general formula:

0 I I

— O — S- OR41 0 in which R4 \ is as defined above.

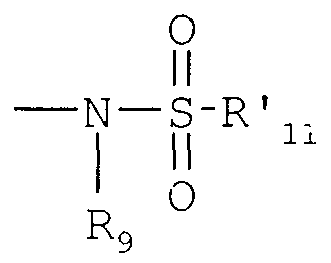

The term "sulfonamido" is art recognized and includes a moiety that can be represented by the general formula:

in which R9 and R'\ \ are as defined above.

The term "sulfamoyl" is art-recognized and includes a moiety that can be represented by the general formula:

in which R9 and RJ Q are as defined above. The terms "sulfoxido" or "sulfinyl", as used herein, refers to a moiety that can be represented by the general formula:

0 I I D S - R44

4 in which R44 is selected from the group consisting of hydrogen, alkyl, alkenyl, alkynyl, cycloalkyl, heterocyclyl, aralkyl, or aryl. A "phosphoryl" can in general be represented by the formula: Qi _ll __

OR46 wherein Qj represented S or O, and R45 represents hydrogen, a lower alkyl or an aryl.

When used to substitute, e.g., an alkyl, the phosphoryl group of the phosphorylalkyl can be represented by the general formula:

Qi Qi

II II

— Q- P-O — — Q- P— OR46

I , or I OR46 OR46 wherein Qj represented S or O, and each R46 independently represents hydrogen, a lower alkyl or an aryl, Q2 represents O, S or N. When Q\ is an S, the phosphoryl moiety is a

"phosphorothioate".

A "phosphoramidite" can be represented in the general formula:

0 0 Q- P-0 Q- P OR46

1 or I N ( R9 ) R10 N ( R9 ) R10 wherein R9 and R]n are as defined above, and Q2 represents O, S or N. A "phosphonamidite" can be represented in the general formula:

R 8 R48

— Q2- p-0— f or— Q- P— OR46

N ( R9) R10 N ( R9 ) R10 wherein R9 and R^ Q are as defined above, Q2 represents O, S or N, and R48 represents a lower alkyl or an aryl, Q2 represents O, S or N.

A "selenoalkyl" refers to an alkyl group having a substituted seleno group attached thereto. Exemplary "selenoethers" which may be substituted on the alkyl are selected from one of -Se-alkyl, -Se-alkenyl, -Se-alkynyl, and -Se-(CH2)m-R7> m and R7 being defined above. Analogous substitutions can be made to alkenyl and alkynyl groups to produce, for example, aminoalkenyls, aminoalkynyls, amidoalkenyls, amidoalkynyls, iminoalkenyls, iminoalkynyls, thioalkenyls, thioalkynyls, carbonyl-substituted alkenyls or alkynyls. The phrase "protecting group" as used herein means substituents which protect the reactive functional group from undesirable chemical reactions. Examples of such protecting groups include esters of carboxylic acids, ethers of alcohols and acetals and ketals of aldehydes and ketones. It will be understood that "substitution" or "substituted with" includes the implicit proviso that such substitution is in accordance with permitted valence of the substituted atom and the substituent, and that the substitution results in a stable compound, e.g., which does not spontaneously undergo transformation such as by rearrangement, cyclization, elimination, etc. As used herein, the term "substituted" is contemplated to include all permissible substituents of organic compounds. In a broad aspect, the permissible substituents include acyclic and cyclic, branched and unbranched, carbocyclic and heterocyclic, aromatic and nonaromatic substituents of organic compounds. Illustrative substituents include, for example, those described hereinabove. The permissible substituents can be one or more and the same or different for appropriate organic compounds. For puφoses of this invention, the heteroatoms such as nitrogen may have hydrogen substituents and/or any permissible substituents of organic compounds described herein which satisfy the valencies of the heteroatoms. This invention is not intended to be limited in any manner by the permissible substituents of organic compounds. A "polar solvent" means a solvent which has a dipole moment (ε) of 2.9 or greater, such as DMF, THF, ethylene gylcol dimethyl ether, DMSO, acetone, acetonitrile, methanol, ethanol, isopropanol, n-propanol, t-butanol or 2-methoxyethyl ether. Preferred solvents are DMF, diglyme, and acetonitrile.

A "polar, aprotic solvent" means a polar solvent as defined above which has no available hydrogens to exchange with the compounds of this invention during reaction, for example DMF, acetonitrile, diglyme, DMSO, or THF.

An "aprotic solvent" means a non-nucleophilic solvent having a boiling point range above ambient temperature, preferably from about 25°C to about 190°C, more preferably from about 80°C to about 160°C, most preferably from about 80°C to 150°C, at atmospheric pressure. Examples of such solvents are acetonitrile, toluene, DMF, diglyme,

THF or DMSO.

For puφoses of this invention, the chemical elements are identified in accordance with the Periodic Table of the Elements, CAS version, Handbook of Chemistry and Physics, 67th Ed., 1986-87, inside cover. Also for puφoses of this invention, the term "hydrocarbon" is contemplated to include all permissible compounds having at least one hydrogen and one carbon atom. In a broad aspect, the permissible hydrocarbons include acyclic and cyclic, branched and unbranched, carbocyclic and heterocyclic, aromatic and nonaromatic organic compounds which can be substituted or unsubstituted.

Exemplary Catalyzed Reactions

As described above, one invention of the Applicants' features a general cross- coupling reaction which comprises combining a alcohol with an aryl group (a "substrate aryl") having an electrophilic center susceptible to attack by the alcohol oxygen. In embodiments where the cross-coupling is catalyzed by a transition metal, the reaction will also include at least a catalytic amount of a transition metal catalyst and the combination is maintained under conditions appropriate for the metal catalyst to catalyze the nucleophilic addition of the reactive alcohol to the electrophilic atom of the substrate aryl. In one embodiment, the subect method can be used to bring about formation of an intramolecular ether linkage, e.g., to form oxygen, thio or seleno heterocycles. In an exemplary embodiment, the subject method can be used to effect the intramolecular Pd- catalyzed ipso substitution of an activated aryl:

As illustrated in the appended examples, five, six and seven-membered heterocyles were obtained in good yields from the corresponding halides. In addition, a variety of functional groups were found to be compatible with the reaction conditions, including acetals, silyl ethers, and amides.

The subject method can also be used for the intermolecular formation of carbon- oxygen bonds. As an exemplary embodiment, the subject method can be used to catalyze such reactions as:

1.2 R'OH + 2.0 + NaH

To further illustrate, the examples describe, inter alia, that reaction of 2-propanol, 4- bromobenzonitrile and NaH in the presence of 1.5 mol% Pd2(dba)3 and 3 mol% (£)-(-)-

2,2'-bis(di-/?-tolylphosphino)-l,l'-binaphthyl (Tol-BINAP) at 50 °C afforded 4- isopropoxy-benzonitrile in 80% isolated yield.

The subject reaction can also be used in the synthesis of diaryl selenoethers and diary 1 thioethers. For instance, the subject method can be used to generate the 6-pyridyl substituted pyrimidines of U.S. patent 5,278,167. Such compounds are useful in the treatment of retroviral infections. In an illustrated embodiment, 6-bromo-5-ethyl-l- (phenoxymethyl)-uracil and 3-pyridineselenol can be reacted according to the conditions of the subject reaction to yield a 5-ethyl-l-(phenoxymethyl)-6-(3-pyridylselanyl)-uracil.

P

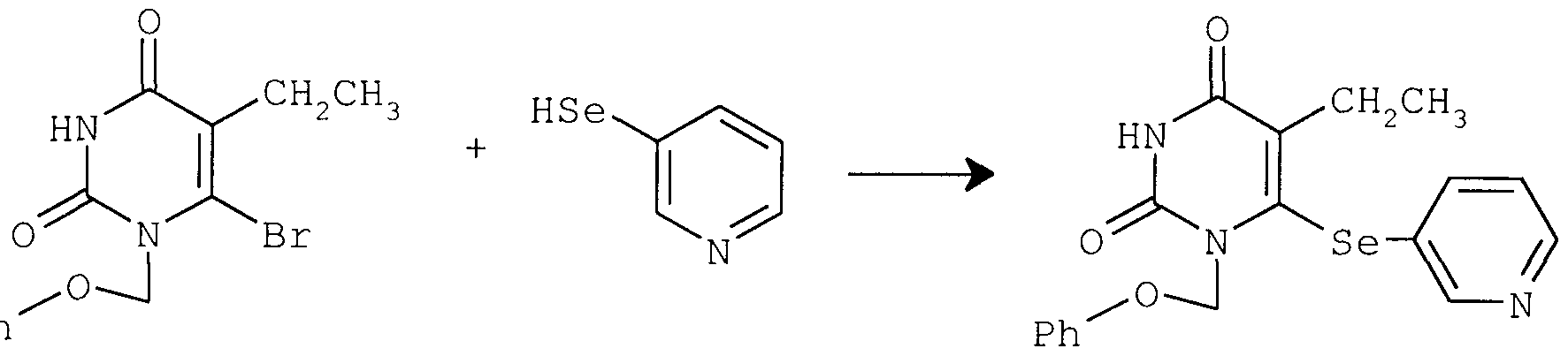

Likewise, 6-bromo-5-ethyl-l-(phenoxymethyl)-uracil and 3-pyridinethiol can be reacted according to the present method in order to yield a 5-ethyl-l -(phenoxymethyl)-6-(3- pyridylsulfanyl)-uracil.

The substrate aryl compounds include compounds derived from simple aromatic rings (single or polycylic) such as benzene, naphthalene, anthracene and phenanthrene; or heteroaromatic rings (single or polycylic), such as pyrrole, thiophene, thianthrene, furan, pyran, isobenzofuran, chromene, xanthene, phenoxathiin, pyrrole, imidazole, pyrazole, thiazole, isothiazole, isoxazole, pyridine, pyrazine, pyrimidine, pyridazine, indolizine, isoindole, indole, indazole, purine, quinolizine, isoquinoline, quinoline, phthalazine, naphthyridine, quinoxaline, quinazoline, cinnoline, pteridine, carbazole, carboline, phenanthridine, acridine, perimidine, phenanthroline, phenazine, phenarsazine, phenothiazine, furazan, phenoxazine, pyrrolidine, oxolane, thiolane, oxazole, piperidine, piperazine, moφholine and the like. In preferred embodiment, the reactive group, X, is substituted on a five, six or seven membered ring (though it can be part of a larger polycyle). In preferred embodiments, aryl substrate may be selected from the group consisting of phenyl and phenyl derivatives, heteroaromatic compounds, polycyclic aromatic and heteroaromatic compounds, and functionalized derivatives thereof. Suitable aromatic compounds derived from simple aromatic rings and heteroaromatic rings, include but are not limited to, pyridine, imidizole, quinoline, furan, pyrrole, thiophene, and the like. Suitable aromatic compounds derived from fused ring systems, include but are not limited to naphthalene, anthracene, tetralin, indole and the like.

Suitable aromatic compounds may have the formula ZpArX, where X is an activated substituent. An activated substituent, X, is characterized as being a good leaving group. In general, the leaving group is a group such as a halide or sulfonate. For the puφoses of the present invention, an activated substituent is that moiety whose conjugate acid, HX, has a pKa of less than 5.0. Suitable activated substituents include, by way of example only, halides such as chloride, bromide and iodide, triflate, mesylate and tosylate.

In certain embodiments, the leaving group is a halide selected from iodine and bromine. Chlorine and fluorine can also be used as leaving groups, though other electronegative substitution on the aryl group may be required to activate those halogens as leaving groups in the subject metal cross-coupling reactions.

Z represents one or more optional substituents on the aromatic ring, though each occurence of Z (p>l) is independently selected. By way of example only, each incidence of substitution independently can be, as valence and stability permit, a halogen, a lower alkyl, a lower alkenyl, a lower alkynyl, a carbonyl (e.g., an ester, a carboxylate, or a formate), a thiocarbonyl (e.g., a thiolester, a thiolcarboxylate, or a thiolformate), a ketyl, an aldehyde, an amino, an acylamino, an amido, an amidino, a cyano, a nitro, an azido, a sulfonyl, a sulfoxido, a sulfate, a sulfonate, a sulfamoyl, a sulfonamido, a phosphoryl, a phosphonate, a phosphinate, -(CH2)m-R8>_(CH2)m-OH, -(CH2)m-O-lower alkyl, - (CH2)m-O-lower alkenyl, -(CH2)m-O-(CH2)n-R8, -(CH2)m-SH, -(CH2)m-S-lower alkyl, -(CH2)m-S-lower alkenyl, -(CH2)m-S-(CH2)n-R8, or protecting groups of the above or a solid or polymeric support; R8 represents a substituted or unsubstituted aryl, aralkyl, cycloalkyl, cycloalkenyl, or heterocycle; and n and m are independently for each occurrence zero or an integer in the range of 1 to 6. P is preferably in the range of 0 to 5. For fused rings, where the number of substitution sites on the aryl group increases, p may be adjusted appropriately.

In certain embodiments, suitable substitients Z include alkyl, aryl, acyl, heteroaryl, amino, carboxylic ester, carboxylic acid, hydrogen group, ether, thioether, amide, carboxamide, nitro, phosphonic acid, hydroxyl, sulfonic acid, halide, pseudohalide groups, and substituted derivatives thereof, and n is in the range of 0 to 5. In particular, the reaction has been found compatible with acetals, amides and silyl ethers as functional groups. For fused rings, where the number of substitution sites on the aromatic ring increases, n may be adjusted appropriately. In addition, the above mentioned moieties may be covalently linked to an alcohol moiety in intramolecular reactions.

In preferred embodiments, the resonance structure of the aryl group Ar, or at least one substituent Z, is electron- withdrawing from the substituted position of X.

A wide variety of substrate aryl groups are useful in the methods of the present invention. The choice of substrate will depend on factors such as the alcohol to be employed and the desired product, and an appropriate aryl substrate will be apparent to the skilled artisan. It will be understood that the aryl substrate preferably will not contain any interfering functionalities. It will further be understood that not all activated aryl substrates will react with every alcohol. The reactive alcohol group can be a molecule separate from the substrate aryl group, or a substituent of the same molecule (e.g., for intramolecular condensation).

The alcohol is selected to provide the desired reaction product. In general, the alcohol may be any alcohol such as, but not limited to, alkyl alcohols, including primary, secondary and tertiary alcohols, and phenols. The alcohol may be functionalized. The alcohol may be selected from a wide variety of structural types, including but not limited to, acyclic, cyclic or heterocyclic compounds, fused ring compounds or phenol derivatives. The aromatic compound and the alcohol may be included as moieties of a single molecule, whereby the arylation reaction proceeds as an intramolecular reaction.

In certain embodiments, the reactive alcohol group which is used in the subject coupling reaction can be represented by general formula ROH (or RSH or RSeH as the case may be). R represents, as valence and stability permit, a subsitituted or unsubstituted alkyl or alkenyl group, or -(CH2)m-R8, wherein R8 represents a substituted or unsubstituted aryl, cycloalkyl, cycloalkenyl, heterocycle or polycycle, and m is zero or an integer in the range of 1 to 8. In other embodiments, R is linker to a solid support. Where R is substituted, it is preferably substituted with an electron withdrawing group in a manner which would substantially reduce the nucleophilicity of the hydroxyl group. For instance, R will not include any electron withdrawing groups bonds less than two bonds from the hyroxyl-substituted carbon. In certain embodiments, the alcohol is generated in situ, e.g., by conversion of a precursor under the reaction conditions.

Alternatively, the corresponding alkoxide salt, e.g., NaOR, LiOR, KOR, etc., may be prepared and used in place of the alcohol. When the corresponding alkoxide is used in the reaction, an additional base may not be required.

The active form of the transition metal catalyst is not well characterized. Therefore, it is contemplated that the "transition metal catalyst" of the present invention, as that term is used herein, shall include any transition metal catalyst and/or catalyst precursor as it is introduced into the reaction vessel and which is, if necessary, converted in situ into the active phase, as well as the active form of the catalyst which participates in the reaction.

In preferred embodiments, the transition metal catalyst complex is provided in the reaction mixture is a catalytic amount. In certain embodiments, that amount is in the range of 0.0001 to 20 mol%>, and preferably 0.05 to 5 mol%, and most preferably 1-3 mol%, with respect to the limiting reagent, which may be either the aromatic compound or the alcohol (or alkoxide) or both, depending upon which reagent is in stoichiometric excess. In the instance where the molecular formula of the catalyst complex includes more than one metal, the amount of the catalyst complex used in the reaction may be adjusted accordingly. By way of example, Pd2(dba)3 has two metal centers; and thus the molar amount of Pd2(dba)3 used in the reaction may be halved without sacrifice to catalytic activity.

Additionally, heterogeneous catalysts containing forms of these elements are also suitable catalysts for any of the transition metal catalyzed reactions of the present invention. Catalysts containing palladium and nickel are preferred. It is expected that these catalysts will perform similarly because they are known to undergo similar reactions, namely oxidative-addition reactions and reductive-elimination reactions, which are thought to be involved in the formation of the aryl ethers of the present invention. However, the different ligands are thought to modify the catalyst performance by, for example, modifying reactivity and preventing undesirable side reactions. As suitable, the catalysts employed in the subject method involve the use of metals which can mediate cross-coupling of the aryl groups ArX and the alcohol as defined above. In general, any transition metal (e.g., having d electrons) may be used to form the catalyst, e.g., a metal selected from one of Groups 3-12 of the periodic table or from the lanthanide series. However, in preferred embodiments, the metal will be selected from the group of late transition metals, e.g. preferably from Groups 5-12 and even more preferably Groups 7-1 1. For example, suitable metals include platinum, palladium, iron, nickel, ruthenium and rhodium. The particular form of the metal to be used in the reaction is selected to provide, under the reaction conditions, metal centers which are coordinately unsaturated and not in their highest oxidation state. The metal core of the catalyst should be a zero valent transition metal, such as Pd or Ni with ability to undergo oxidative addition to Ar-X bond. The zerovalent state, M^, may be generated in situ from M+2-

To further illustrate, suitable transition metal catalysts include soluble complexes of platinum, palladium and nickel. Nickel and palladium are particularly preferred and palladium is most preferred. A zero-valent metal center is presumed to participate in the catalytic carbon-oxygen bond forming sequence. Thus, the metal center is desirably in the zero-valent state or is capable of being reduced to metal(O). Suitable soluble palladium complexes include, but are not limited to, tris(dibenzylideneacetone) dipalladium [Pd2(dba)3], bis(dibenzylideneacetone) palladium [Pd(dba)2] and palladium acetate. Alternatively, particularly for nickel catalysts, the active species for the oxidative-addition step may be in the metal (+1) oxidative-addition state.

Catalysts containing palladium and nickel are preferred. It is expected that these catalysts will perform comparably because they are known to undergo similar reactions, namely cross-coupling reactions, which may be involved in the formation of the aryl ethers of the present invention.

The coupling can be catalyzed by a palladium catalyst which may take the form of, to illustrate, PdCl , Pd(OAc)2, (CH3CN)2PdCl2, Pd[P(C6H5)3] , and polymer supported

Pd(0). In other embodiments, the reaction can be catalyzed by a nickel catalyst, such as Ni(acac)2, NiCl2[P(CgH5)]2, Raney nickel and the like, wherein "acac" represents acetylacetonate.

The catalyst will preferably be provided in the reaction mixture as metal-ligand complex comprising a bound supporting ligand, that is, a metal-supporting ligand complex. The ligand effects can be key to favoring, inter alia, the reductive elimination pathway or the like which produces the ether, over such side reactions as β-hydride elimination. In particular, the use of bulky and less electron-donating ligands (but probably still chelating ligands) should favor the reductive elimination process. In preferred embodiments, the subject reaction employs bulky bidentate ligands such as bisphosphines.

The ligand, as described in greater detail below, may include chelating ligands, such as by way of example only, alkyl and aryl derivatives of phosphines and bisphosphines, imines, arsines, and hybrids thereof, including hybrids of phosphines with amines. Weakly or non-nucleophilic stabilizing ions are preferred to avoid complicating side reaction of the counter ion attacking or adding to the electrophilic center of the substrate aryl. This catalyst complex may include additional ligands as is necessary to obtain a stable complex. Moreover, the ligand can be added to the reaction mixture in the form of a metal complex, or added as a separate reagent relative to the addition of the metal. By way of example, PdCl2(BINAP) may be prepared in a separate step and used as the catalyst complex set forth in scheme 1 a.

The ligand, if chiral can be provided as a racemic mixture or a purified stereoisomer.

The supporting ligand may be added to the reaction solution as a separate compound or it may be complexed to the metal center to form a metal-supporting ligand complex prior to its introduction into the reaction solution. Supporting ligands are compounds added to the reaction solution which are capable of binding to the catalyst metal center, although an actual metal-supporting ligand complex has not been identified in each and every synthesis. In some preferred embodiments, the supporting ligand is a chelating ligand. Although not bound by any theory of operation, it is hypothesized that the supporting ligands prevent unwanted side reactions as well as enhancing the rate and efficiency of the desired process. Additionally, they often aid in keeping the metal catalyst soluble. Although the present invention does not require the formation of a metal- supporting ligand complex, such complexes have been shown to be consistent with the postulate that they are intermediates in these reactions and it has been observed the selection of the supporting ligand has an affect on the course of the reaction.

The supporting ligand is present in the range of 0.0001 to 40 mol% relative to the limiting reagent, i.e., alcohol or aromatic compound. The ratio of the supporting ligand to catalyst complex is typically in the range of about 1 to 20, and preferably in the range of about 1 to 4 and most preferably about 2.4. These ratios are based upon a single metal complex and a single binding site ligand. In instances where the ligand contains additional binding sites (i.e., a chelating ligand) or the catalyst contains more than one metal, the ratio is adjusted accordingly. By way of example, the supporting ligand BINAP contains two coordinating phosphorus atoms and thus the ratio of BINAP to catalyst is adjusted downward to about 1 to 10, preferably about 1 to 2 and most preferably about 1.2. Conversely, Pd2(dba)3 contains two palladium metal centers and the ratio of ligand to Pd2(dba)3 is adjusted upward to 1 to 40, preferably 1 to 8 and most preferably about 4.8. In certain embodiments of the subject method, the transition metal catalyst includes one or more phosphine ligands, e.g., as a Lewis basic co-catalyst that controls the stability and electron transfer properties of the transition metal catalyst, and/or stabilizes the metal intermediates. Phosphine ligands are commercially available or can be prepared by methods similar to processes known per se. The phosphines can be monodentate phosphine ligands, such as trimethylphosphine, triethylphosphine, tripropylphosphine, triisopropylphosphine, tributylphosphine, tricyclohexylphosphine, trimethyl phosphite, triethyl phosphite, tripropyl phosphite, triisopropyl phosphite, tributyl phosphite and tricyclohexyl phosphite, in particular triphenylphosphine, tri(o-tolyl)phosphine, triisopropylphosphine or tricyclohexylphosphine; or a bidentate phosphine ligand such as 2,2'-bis(diphenylphosphino)-l,l'-binaphthyl (BINAP), l,2-bis(dimethylphosphino)ethane, 1 ,2-bis(diethylphosphino)ethane, 1 ,2-bis(dipropylphosphino)ethane, 1 ,2- bis(diisopropylphosphino)ethane, 1 ,2-bis(dibutyl-phosphino)ethane. 1 ,2- bis(dicyclohexylphosphino)ethane, l ,3-bis(dicyclohexylphosphino) propane, l ,3-bis(diiso- propylphosphino)propane, 1 ,4-bis(diisopropylphosphino)-butane and 2,4- bis(dicyclohexylphosphino)pentane.

In preferred embodiments, the phosphine ligand is one (or a mix of) of P(o-tolyl)3. Bis(phosphine) ligands are particularly preferred chelating supporting ligands. Suitable bis(phosphine) compounds include but are in no way limited to (±)-2,2'- bis(diphenylphosphino)-l,l'-binaphthyl (and separate enantiomers), (±)-2,2'-bis(di-p- tolylphosphino)-l.l'-binaphthyl (and separate enantiomers), 1-1'- bis(diphenylphosphino)ferrocene, 1 ,3-bis(diphenylphosphino)propane; 1 ,2- bis(diphenylphosphino)benzene, and 1 ,2-bis(diphenylphosphino)ethane. Hybrid chelating ligands such as (±)-N,N-dimethyl-l-[2-(diphenylphosphino) ferrocenyljethylamine (and separate enantiomers), and (±)-(R)-l-[(S)-2-(diphenylphosphino)-ferrocenyl]ethyl methyl ether (and separate enantiomers) are also within the scope of the invention.

In some instances, it may be necessary to include additional reagents in the reaction to promote reactivity of either the transition metal catalyst or activated aryl nucleus. In particular, it may be advantageous to include a suitable base. In general, a variety of bases may be used in practice of the present invention. The base is desirably capable of extraction of a proton to promote metal-alkoxide formation. It has not been determined if deprotonation occurs prior to or after oxygen coordination. The base may optionally be sterically hindered to discourage metal coordination of the base in those circumstances where such coordination is possible, i.e., alkali metal alkoxides. Exemplary bases include such as, for example: an alkoxides such as sodium tert-butoxide, an alkali metal amide such as sodium amide, lithium diisopropylamide or an alkali metal bis(trialkyl-silyl)amides, e.g., such as lithium bis-(trimethyl-silyl)amide or sodium bis-

(trimethyl- silyl) amide, a tertiary amine (e.g. triethylamine, trimethylamine, N,N- dimethylaminopyridine, l,5-diazabicycl[4.3.0]nonene-5 (DBN), 1,5-diazabicycl [5.4.0]undecene-5 (DBU), alkali, alkaline earth carbonate, bicarbonate or hydroxide (e.g. sodium, magnesium, calcium, barium, potassium carbonate, hydroxide and bicarbonate).

By way of example only, suitable bases include NaH, LiH, KH, K2CO3, Na2CO3, Tl2CO3,

Cs2CO3, K(OfBu), Li(O/Bu), Na(O/Bu) K(OPh), Na(OPh), triethylamine or mixtures thereof. NaH, Na(O/Bu) and K2CO3 have been found useful in a wide variety of aryl ether bond forming reactions. Preferred bases include CS2CO3, DBU, NaH, KOt-Bu,

KN(SiMe3)2, NaN(SiMe3)2, and LiN(SiMe3)2.

Base is used in approximately stoichiometric proportions in reaction using alcohol.

The present invention has demonstrated that there is no need for large excesses of base in order to obtain good yields of aryl ether under mild reaction conditions. No more than four equivalents and preferably no more than two equivalents are needed. Further, in reactions using the corresponding alkoxide as the reagent, there may be no need for additional base.

In this way a wide range of aryl ethers, thioethers and selenoethers may be prepared from available alcohols, thiols and selenols. The reaction can be accomplished using a wide range of alcohols, which are either commercially available or obtainable from conventional syntheses using a variety of methods known in the art.

As is clear from the above discussion, the products which may be produced by the etherification reaction of this invention can undergo further reaction(s) to afford desired derivatives thereof. Such permissible derivatization reactions can be carried out in accordance with conventional procedures known in the art. For example, potential derivatization reactions include esterification, oxidation of alcohols to aldehydes and acids, N-alkylation of amides, nitrile reduction, acylation of ketones by esters, acylation of amines and the like. III. Reaction Conditions

The etherification reactions of the present invention may be performed under a wide range of conditions, though it will be understood that the solvents and temperature ranges recited herein are not limitative and only correspond to a preferred mode of the process of the invention.

In general, it will be desirable that reactions are run using mild conditions which will not adversely affect the reactants, the catalyst, or the product. For example, the reaction temperature influences the speed of the reaction, as well as the stability of the reactants and catalyst. The reactions will usually be run at temperatures in the range of

25°C to 300°C, more preferably in the range 25°C to 150°C.

In general, the subject reactions are carried out in a liquid reaction medium. The reactions may be run without addition of solvent. Alternatively, the reactions may be run in an inert solvent, preferably one in which the reaction ingredients, including the catalyst, are substantially soluble. Suitable solvents include ethers such as diethyl ether, 1,2- dimethoxyethane, diglyme, t-butyl methyl ether, tetrahydrofuran and the like; halogenated solvents such as chloroform, dichloromethane, dichloroethane, chlorobenzene, and the like; aliphatic or aromatic hydrocarbon solvents such as benzene, xylene, toluene, hexane, pentane and the like; esters and ketones such as ethyl acetate, acetone, and 2-butanone; polar aprotic solvents such as acetonitrile, dimethylsulfoxide, dimethylformamide and the like; or combinations of two or more solvents.

The invention also contemplates reaction in a biphasic mixture of solvents, in an emulsion or suspension, or reaction in a lipid vesicle or bilayer. In certain embodiments, it may be preferred to perform the catalyzed reactions in the solid phase with one of the reactants anchored to a solid support.

In certain embodiments it is preferable to perform the reactions under an inert atmosphere of a gas such as nitrogen or argon.

The reaction processes of the present invention can be conducted in continuous, semi-continuous or batch fashion and may involve a liquid recycle operation as desired. The processes of this invention are preferably conducted in batch fashion. Likewise, the manner or order of addition of the reaction ingredients, catalyst and solvent are also not generally critical and may be accomplished in any conventional fashion. The reaction can be conducted in a single reaction zone or in a plurality of reaction zones, in series or in parallel or it may be conducted batchwise or continuously in an elongated tubular zone or series of such zones. The materials of construction employed should be inert to the starting materials during the reaction and the fabrication of the equipment should be able to withstand the reaction temperatures and pressures. Means to introduce and/or adjust the quantity of starting materials or ingredients introduced batchwise or continuously into the reaction zone during the course of the reaction can be conveniently utilized in the processes especially to maintain the desired molar ratio of the starting materials. The reaction steps may be effected by the incremental addition of one of the starting materials to the other. Also, the reaction steps can be combined by the joint addition of the starting materials to the metal catalyst. When complete conversion is not desired or not obtainable, the starting materials can be separated from the product and then recycled back into the reaction zone.

The processes may be conducted in either glass lined, stainless steel or similar type reaction equipment. The reaction zone may be fitted with one or more internal and/or external heat exchanger(s) in order to control undue temperature fluctuations, or to prevent any possible "runaway" reaction temperatures.

Furthermore, one or more of the reactants can be immobilized or incoφorated into a polymer or other insoluble matrix by, for example, derivativation with one or more of substituents of the aryl group.

IV. Combinatorial Libraries

The subject etherification reaction readily lends itself to the creation of combinatorial libraries of aryl ethers for the screening of pharmaceutical, agrochemical or other biological or medically-related activity or material-related qualities. A combinatorial library for the puφoses of the present invention is a mixture of chemically related compounds which may be screened together for a desired property. The preparation of many related compounds in a single reaction greatly reduces and simplifies the number of screening processes which need to be carried out. Screening for the appropriate biological, pharmaceutical, agrochemical or physical property is done by conventional methods.

Diversity in the library can be created at a vareity of different levels. For instance, the substrate aryl groups used in the combinatorial reactions can be diverse in terms of the core aryl moiety, e.g., a vareigation in terms of the ring structure, and/or can be varied with respect to the other substituents.

A variety of techniques are available in the art for generating combinatorial libraries of small organic molecules such as the subject arylamines. See, for example, Blondelle et al. (1995) Trends Anal. Chem. 14:83; the Affymax U.S. Patents 5,359,1 15 and 5,362,899: the Ellman U.S. Patent 5,288,514: the Still et al. PCT publication WO 94/08051 ; Chen et al. (1994) JACS 1 16:2661 : Kerr et al. (1993) JACS 1 15:252; PCT publications WO92/10092, WO93/09668 and WO91/07087; and the Lerner et al. PCT publication WO93/20242). Accordingly, a variety of libraries on the order of about 100 to 1 ,000,000 or more diversomers of the subject aryl ethers can be synthesized and screened for particular activity or property.

In an exemplary embodiment, a library of substituted diversomers can be synthesized using the subject alcohol cross-coupling reaction adapted to the techniques described in the Still et al. PCT publication WO 94/08051, e.g., being linked to a polymer bead by a hydrolyzable or photolyzable group e.g., located at one of the positions of the aryl group or a substituent of the alcohol. According to the Still et al. technique, the library is synthesized on a set of beads, each bead including a set of tags identifying the particular diversomer on that bead. In one embodiment, which is particularly suitable for discovering enzyme inhibitors, the beads can be dispersed on the surface of a permeable membrane, and the diversomers released from the beads by lysis of the bead linker. The diversomer from each bead will diffuse across the membrane to an assay zone, where it will interact with an enzyme assay.

Exemplification The invention may be understood with reference to the following examples, which are presented for illustrative puφoses only and which are non-limiting. Alcohols and aromatic compounds for intermolecular reactions were all commercially available. Substrates used in intramolecular reactions were prepared using standard synthetic organic methods in about 3-5 synthetic steps. Palladium catalysts were all commercially available. Example 1-1 1. Examples 1-1 1 demonstrate the versatility of the aryl ether synthetic route of the invention. A variety of substituted aromatic compounds with attached alcohol moieties were subjected to palladium-catalyzed cross coupling to afford variously substituted heterocyclic ethers. The starting aromatic compounds and alcohols are reported in Table 1. The reactions were carried out as described in the legend.

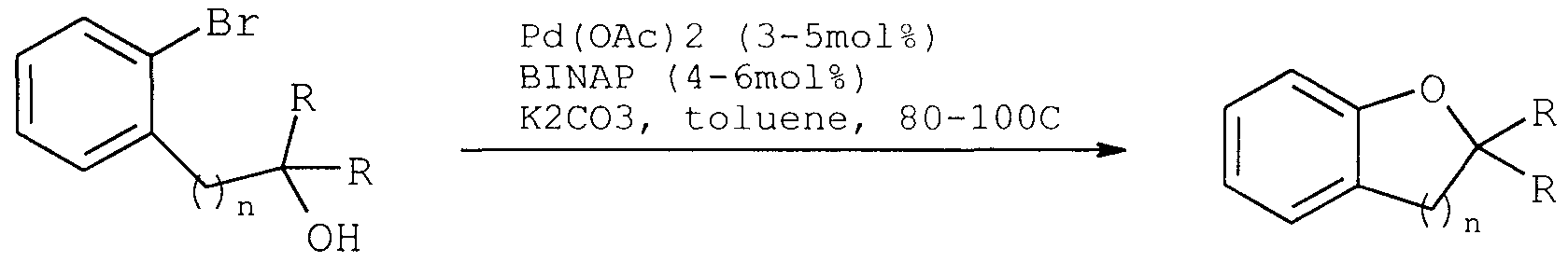

As shown in Table 1 , five, six and seven-membered heterocycles were obtained in good yields from the corresponding aryl halide. In addition, a number of functional groups were found compatible with the reaction conditions including acetals (Example 3), silyl ethers (Example 4), and amides (Example 7). Reactions performed using method A were significantly slower (24-36 h) than reactions performed using method B (1-6 h), however, the reactions using method A were somewhat cleaner. Cyclization of the aryl iodide substrate (Example 2) was extremely slow in toluene, but in 1 ,4-dioxane, complete conversion occurred in 24-36 h. Two equivalents of ligand relative to palladium (P:Pd = 4) and two equivalents of base relative to substrate were used to achieve reasonable yields in the cyclization reactions of Example 1 1 containing a secondary alcohol. Observed side products included dehalogenation of the aryl halides and in the case of substrates containing secondary alcohols, along with the oxidation of the alcohol to a ketone.

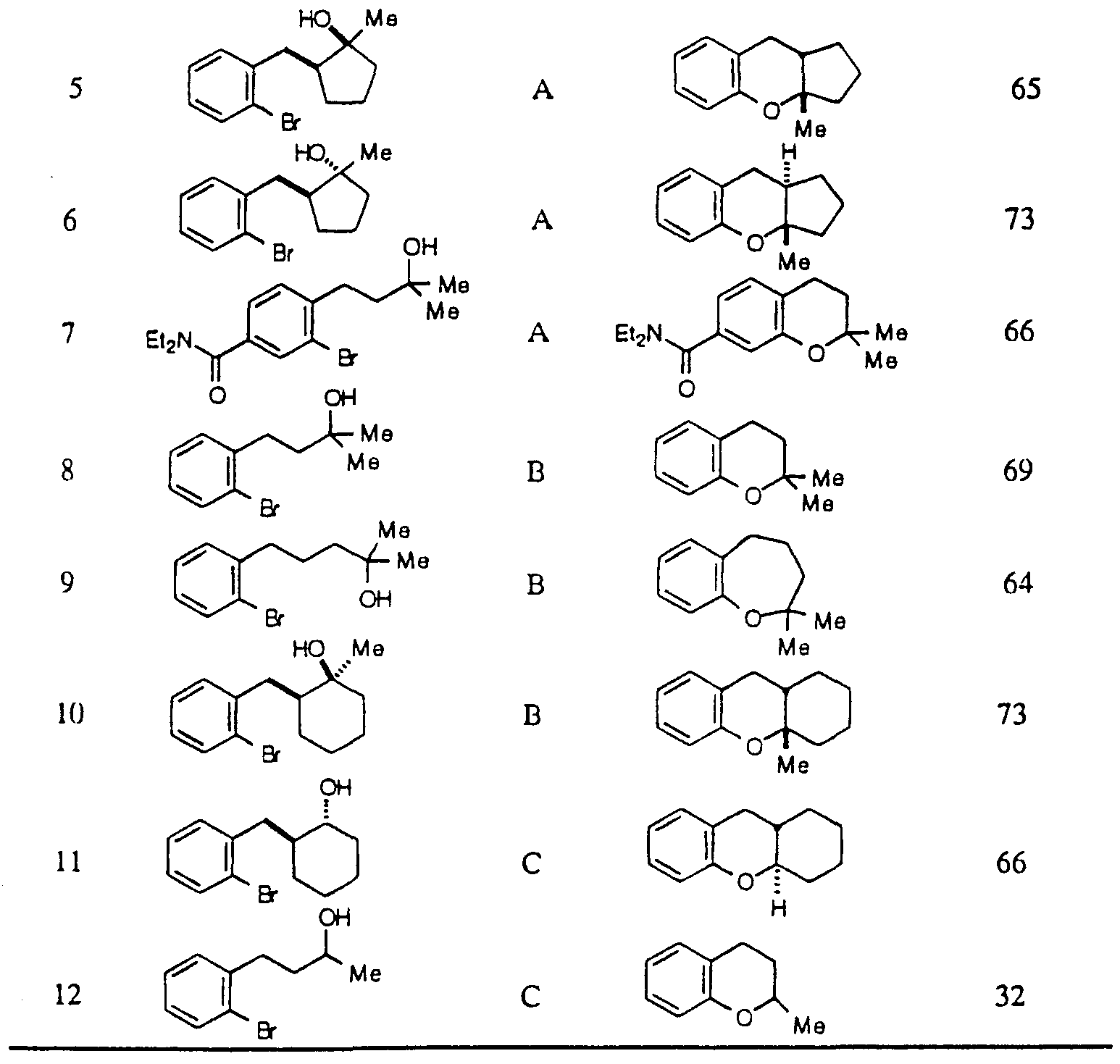

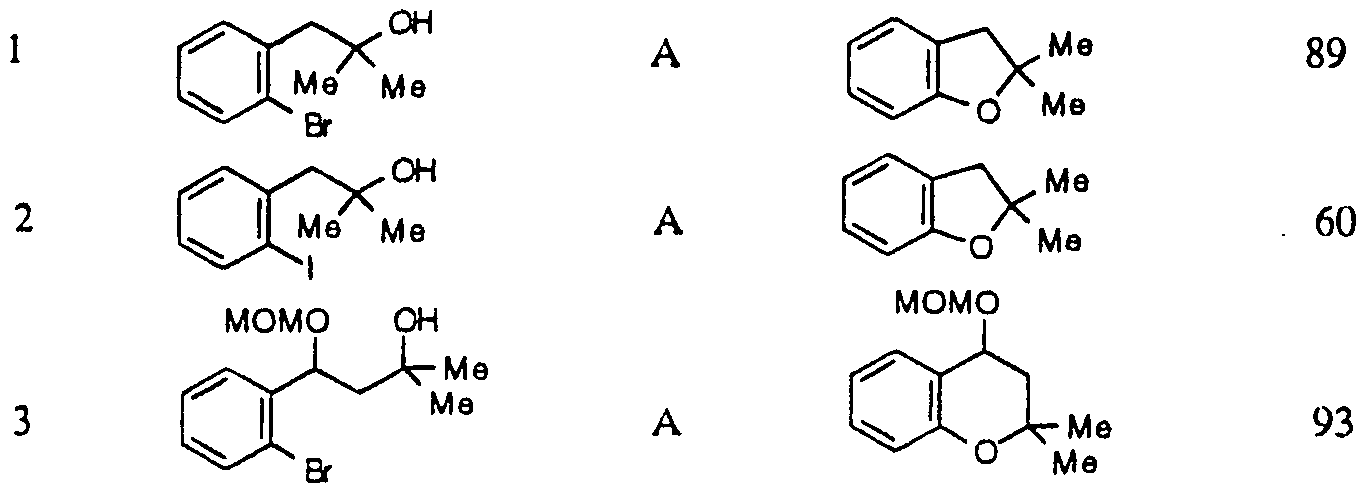

Table 1. Pd-Catalyzed Synthesis of Cyclic Aryl Ethers

Entry Substrate Method" Product Yield (%)b

TBDMSO OH TBOMSO

4 A ' 90

a Method A: 5 mol % Pd(OAc)2, 6 mol % Tol-BINAP, 1.2 equiv of K2CO3 in toluene at 100 °C. Method B: 3 mol % Pd(OAc)2, 3.6 mol % DPPF, 1.2 equiv of NaOt-Bu in toluene at 80 °C. Method C: 5 mol % Pd(OAc)2, 10 mol % DPPF, 2.0 equiv of NaOr-Bu in toluene d i 90 °C. b Yields refer to average isolated yields of two or more runs. Reaction was performed in 1,4-dioxane. Example 12. This example demonstrates the palladium-catalyzed intermolecular synthesis of the aryl ether, 4-/-butoxybenzonitrile.

A Schlenk tube was charged with Na(O/Bu) (97 mg, 1.00 mmol), Pd(OAc)2 (5.6 mg, 0.025 mmol), ( ?)-(+)-2,2'-bis(di-p-tolylphosphino)-l,l'-binaphthyl (Tol-BINAP) (20.4 mg, 0.030 mmol), 4-bromobenzonitrile (91 mg, 0.50 mmol), and toluene (3 mL).The mixture was heated at 100 °C for 30 h under an atmosphere of argon. The mixture was cooled to room temperature and diethyl ether (20 mL) and water (20 mL) were added. The organic layer was separated, washed with brine (20 mL), dried over anhydrous MgSO4, and concentrated in vacuo. The crude product was purified by flash chromatography on silica gel (19/1 hexane/ethyl acetate) to afford 4-/-butoxybenzonitrile as a yellow oil (39 mg, 45% yield).

Example 13. This example demonstrates the palladium-catalyzed intermolecular synthesis of the aryl ether, 4-/-butylphenyl /-butyl ether.

An oven dried Schlenk equipped with a teflon coated stir bar was charged with Na(O/-Bu) (97 mg, 1.00 mmol), Pd(OAc)2 (5.6 mg, 0.025 mmol), and Tol-BINAP (20.4 mg, 0.030 mmol). The Schlenk was evacuated, back-filled with argon, and charged with toluene (3 mL) and 4-/-butyl bromobenzene (87 μL, 0.50 mmol). The mixture was heated at 100 °C for 40 h at which time the mixture was cooled to room temperature and diethyl ether (20 mL) and water (20 mL) were added. The organic layer was separated, washed with brine (20 mL), dried over anhydrous MgSO4, and concentrated in vacuo. The crude product was purified by flash chromatography on silica gel (99/1 hexane/ethyl acetate) to afford 4-/-butylphenyl /-butyl ether as a yellow oil (59 mg, 53% yield).
